Engineered Lightning Protection.
Designed for Absolute Reliability.
Precision-driven lightning protection, grounding, and surge mitigation—built to safeguard critical infrastructure without compromise.
Lightning Doesn't Give Warnings. It Delivers Damage.
A single lightning strike can shut down operations, damage critical systems, and compromise safety in seconds. Many facilities struggle with designing compliant lightning protection systems, validating grounding performance, and integrating surge protection across electrical infrastructure.
A storm hits, and critical equipment fails — no one knows if the grounding system was ever tested.
Sensitive electronics burn out — not from the strike, but from internal surges that weren't controlled.
A compliance audit is scheduled, and documentation for bonding and protection design is incomplete.
Lightning protection is installed — but it was never integrated with electrical and MEP systems.
Protection isn't a product. It's a system — and it starts with engineering the entire system, not just installing components.
How ICS Designs a Complete Lightning Protection System
From risk evaluation to final documentation, ICS delivers lightning protection design services as fully engineered, standards-compliant systems tailored to your structure.
Risk Assessment
We assess your structure's exposure and vulnerability through a detailed lightning risk assessment and LPS design, using parameters such as:
- Geographic lightning density
- Structure height, footprint, and usage
- Environmental conditions and soil characteristics
- Occupancy type and asset criticality
The protection level is scientifically determined — not assumed.

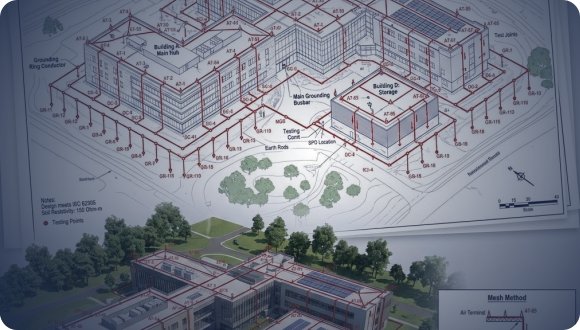

System Design Development
Develop a custom lightning protection layout aligned with international standards:
The design integrates seamlessly with architectural and MEP systems to ensure constructability and performance.

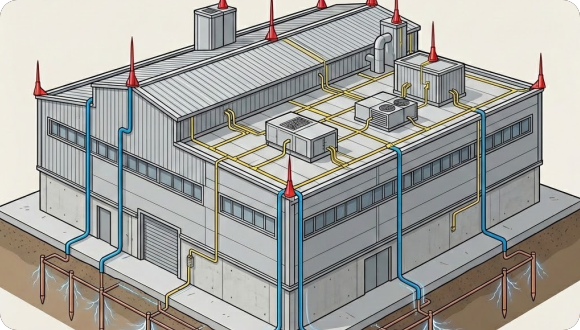

Component Engineering & Specification
Each component is carefully selected and sized for optimal performance:
Air Termination Network
Strategically placed strike receptors at critical points
Down Conductors
Low-impedance paths for safe current flow
Bonding System
Eliminates voltage differences across conductive elements
Ground Termination System
Efficient dissipation of lightning energy into earth
All specifications are aligned with code and real-world operating conditions.

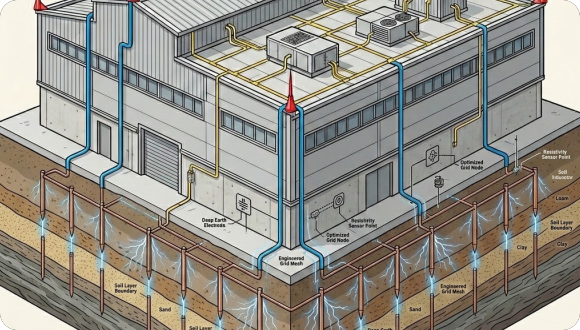

Grounding & Earthing Design
We design high-efficiency grounding systems that ensure:
- Low-resistance discharge paths
- Soil resistivity-based electrode planning
- Optimized grounding grid configurations
- Reduced step and touch voltage risks
Standards followed include:

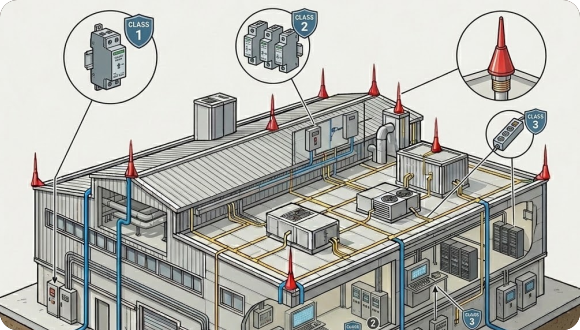

Surge Protection Planning
Lightning isn't the only threat — internal switching surges can be equally damaging. ICS designs a layered Surge Protection Device (SPD) strategy:
- Type 1, Type 2, and Type 3 SPD selection
- Strategic placement across panels, control systems, and networks
- Coordination across electrical distribution hierarchy
SPD Standards aligned:
Documentation & Delivery
Every project is delivered with complete technical clarity:
Detailed CAD Drawings
Complete system layouts and component placement
Material Take-Off (MTO)
Component-level material specification for procurement
Installation Guidelines
Clear instructions for implementation teams
Compliance Documentation
Audit-ready reports for inspections and certifications
What You Gain with ICS Engineering
Engineered Risk Reduction
Protection levels are calculated and validated — not guessed.
Code-Driven Design
Aligned with global standards: UL, NFPA, IEC, and IEEE.
Complete System Integration
Protection, grounding, and surge protection work as a unified system.
Audit-Ready Compliance
Full documentation ensures readiness for inspections and certifications.
Installation Clarity
Contractors get precise guidance — reducing errors and rework.
Adapted to Site Conditions
Designs account for soil, environment, and structural specifics.
Reduced Long-Term Damage Costs
Prevent expensive failures in equipment, operations, and infrastructure.
Everything Required for a Complete Lightning Protection System
Lightning Protection Components
- Strike Termination Devices: Capture lightning at defined interception points
- Conductors: Safely carry lightning current through the system
- Cable Connectors: Ensure secure electrical continuity
- Bonding & Fittings: Clamps, bonding lugs, plates, and bimetallic connectors for multi-metal compatibility
- Stainless Steel Fasteners: Corrosion-resistant hardware for durable installations
Grounding Electrodes
- Ground rods, plates, and conductors designed for efficient energy dissipation
- Configured based on soil resistivity for optimal performance
- Sized to handle system load requirements safely
- Installed to ensure minimal step and touch voltages
- Provides a reliable path for fault currents and protection
Bonding & Equalization
- Common bonding point integration for system-wide continuity
- Connections to structural steel, water pipes, or ground bars
- Maintains uniform potential across all equipment
- Reduces risk of electrical shock or potential differences
- Ensures compliance with electrical safety standards
Grounding & Earthing Engineering
- Soil resistivity testing and detailed analysis
- Electrode system design and optimal layout planning
- Step and touch voltage mitigation for safety
- Verification of grounding paths and resistance values
- Engineering support for long-term reliability and compliance
Surge Protection System Design
- Multi-layer SPD architecture for robust protection
- External and internal surge mitigation
- Protects power systems and sensitive electronics
- Coordination with grounding and bonding for optimal efficiency
- Compliance with industry standards for surge protection
Design & Documentation Package
- CAD layouts for installation and planning
- Material Take-Off (MTO) reports for accurate procurement
- Compliance documentation for audits and approvals
- Installation guidance and best practices
- Inspection and verification support for quality assurance
End-to-End System Thinking — Not Just Lightning Rods
Most providers focus on air terminals alone. ICS engineers the entire protection ecosystem — from strike interception to energy dissipation and surge control.
Standards-First Approach
Every design strictly adheres to:
No shortcuts. No approximations.
Deep Engineering + Practical Execution
Our designs are not just technically accurate — they are buildable, scalable, and field-ready. Every specification is engineered for real-world implementation.
Tailored to Every Structure
No generic templates. Every solution is customized based on:
- Site conditions
- Structural design
- Industry requirements
Collaborative Project Integration
We work alongside:
- Architects
- Structural engineers
- MEP consultants
- Contractors
Ensuring seamless implementation from design to installation.
Comparison Snapshot
| Capability | ICS | Basic Providers |
|---|---|---|
| Full system design | End-to-end | Partial |
| Code compliance | Global standards | Limited |
| Grounding engineering | Advanced | Basic |
| SPD integration | Layered approach | Often missing |
| Documentation | Audit-ready | Incomplete |
| Customization | Site-specific | Generic |
Complete Protection Engineering — At a Glance
Risk & Design Engineering
- Lightning risk assessment and LPS Design
- Code-compliant CAD system design
- Component specification and layout
- Protection level classification (LPL)
Grounding & Electrical Safety
- Soil resistivity testing
- Grounding grid design
- Step and touch voltage control
- Earth resistance validation
Surge & System Protection
- SPD selection and placement
- Electrical system coordination
- Internal + external surge defense
- SPD zone coordination (LPZ)
Execution & Compliance
- Installation guidelines
- Material take-offs
- Audit-ready documentation
- Multi-stakeholder coordination
Don't wait for a failure to expose gaps in your protection system.
Get Technical Overview
Access detailed specifications, standards, and system capabilities.
Download Technical OverviewRequest a Custom Design
Get a solution tailored to your structure and site conditions.
Request Design ConsultationFrequently Asked Questions
Yes. All ICS designs comply with NFPA 780, UL 96A, IEC 62305, IEEE 80, NEC, and other applicable standards.
Absolutely. Grounding and earthing systems are a core part of our design approach, ensuring safe energy dissipation.
Yes. We design and retrofit SPD systems across electrical networks to protect against both lightning and internal surges.
You will receive CAD drawings, MTOs, installation guidelines, and full compliance documentation.
Yes. Each system is tailored based on structure type, environment, and industry-specific risks.
Industries We Serve
ICS protection systems are trusted across diverse sectors
